Understanding MSD Caps: Functionality, Importance, and Modern Alternatives

The term “MSD cap” might sound technical, but it refers to a crucial component in the world of automotive ignition systems, particularly in older vehicles. An MSD cap, short for Multiple Spark Discharge distributor cap, plays a vital role in directing high-voltage electricity to the correct spark plug at the precise moment needed for combustion. This article delves into the functionality of MSD caps, their significance, common issues, and modern alternatives that offer enhanced performance and reliability. Understanding the MSD cap and its role is essential for anyone interested in automotive mechanics, performance tuning, or simply maintaining a classic vehicle.

What is an MSD Cap?

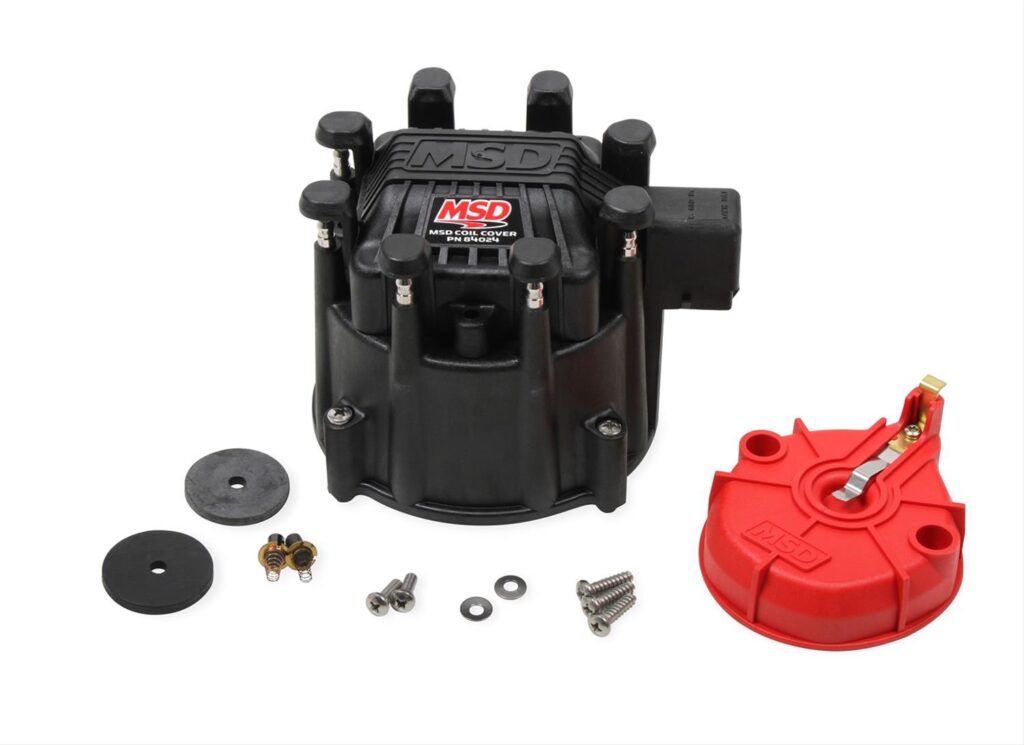

At its core, an MSD cap is a component of the distributor, which is responsible for distributing the high-voltage electrical current from the ignition coil to the spark plugs in the correct firing order. The distributor cap sits on top of the distributor and has terminals that correspond to each spark plug. The rotor, located inside the distributor, spins and makes contact with these terminals, allowing the high-voltage current to flow to the appropriate spark plug. The MSD cap is a specialized version of this distributor cap, often used in high-performance or racing applications due to its enhanced ability to handle the higher energy output of MSD ignition systems.

The primary function of an MSD cap is to provide a reliable pathway for the high-voltage current. Without a properly functioning cap, the engine will misfire, run poorly, or not start at all. The material and design of the MSD cap are critical to its performance and longevity.

The Functionality of MSD Caps

The MSD cap’s functionality is intertwined with the overall ignition system. Here’s a breakdown of how it works:

1. Ignition Coil: The ignition coil generates a high-voltage electrical pulse.
2. Distributor: The distributor receives this high-voltage pulse.
3. Rotor: The rotor, driven by the engine, spins within the distributor.
4. MSD Cap: As the rotor spins, it aligns with the terminals inside the MSD cap.
5. Spark Plugs: When the rotor aligns with a terminal, the high-voltage current is discharged through the MSD cap to the corresponding spark plug.
6. Combustion: The spark plug ignites the air-fuel mixture in the cylinder, initiating combustion.

The MSD cap must withstand high temperatures, vibrations, and electrical stress. A crack or other damage to the MSD cap can cause arcing, misfires, and a significant drop in engine performance. [See also: Troubleshooting Ignition System Problems]

Why are MSD Caps Important?

The importance of MSD caps stems from their role in ensuring reliable and efficient ignition. Here are several reasons why they are crucial:

• Reliable Ignition: A well-maintained MSD cap ensures that each spark plug receives the necessary voltage at the correct time, leading to consistent combustion.
• Engine Performance: Proper ignition timing and voltage delivery are essential for optimal engine performance, including power output, fuel efficiency, and smooth operation.
• Preventing Misfires: A faulty MSD cap can cause misfires, which can lead to reduced power, increased emissions, and potential damage to the catalytic converter.
• Durability: High-quality MSD caps are designed to withstand the harsh conditions under the hood, providing long-lasting performance.

Common Issues with MSD Caps

Like any automotive component, MSD caps are subject to wear and tear. Common issues include:

• Cracking: Exposure to heat and vibrations can cause the MSD cap to crack, leading to arcing and misfires.
• Carbon Tracking: High-voltage arcing can create carbon tracks inside the MSD cap, providing an alternate path for the current and reducing its effectiveness.
• Corrosion: The terminals inside the MSD cap can corrode over time, leading to poor electrical contact.
• Burn-Through: Excessive heat or voltage can cause the MSD cap to burn through, resulting in a complete failure.

Regular inspection of the MSD cap is crucial for identifying these issues early and preventing more significant problems. Symptoms of a failing MSD cap can include rough idling, hesitation during acceleration, reduced fuel economy, and difficulty starting the engine. [See also: Diagnosing Engine Misfires]

Diagnosing MSD Cap Problems

Diagnosing problems with an MSD cap typically involves a visual inspection and electrical testing. Here are some steps to follow:

1. Visual Inspection: Check the MSD cap for cracks, carbon tracks, and corrosion. Look for any signs of physical damage.
2. Continuity Test: Use a multimeter to test the continuity between the terminals and the center button of the MSD cap. A lack of continuity indicates a problem.
3. Resistance Test: Measure the resistance between the terminals. High resistance can indicate corrosion or carbon tracking.
4. Spark Test: Use a spark tester to check the spark output from each terminal. A weak or non-existent spark suggests a faulty MSD cap.

If any of these tests reveal a problem, replacing the MSD cap is usually the best course of action. Ensure you purchase a high-quality replacement that matches your vehicle’s specifications.

Modern Alternatives to Traditional MSD Caps

While MSD caps are still used in many older and high-performance vehicles, modern ignition systems offer several alternatives that provide improved reliability and performance. These alternatives often incorporate electronic ignition systems that eliminate the need for a traditional distributor and MSD cap. Some notable alternatives include:

• Coil-on-Plug (COP) Systems: COP systems have individual ignition coils for each spark plug, eliminating the need for a distributor and MSD cap. This design provides more precise spark timing and increased energy output.
• Distributorless Ignition Systems (DIS): DIS systems use electronic sensors and a control module to determine the optimal spark timing. They also eliminate the need for a distributor and MSD cap.
• Electronic Fuel Injection (EFI) with Integrated Ignition: Modern EFI systems often integrate the ignition system, providing precise control over both fuel delivery and spark timing.

These modern alternatives offer several advantages over traditional MSD cap-based systems, including improved reliability, reduced maintenance, and enhanced performance. [See also: Upgrading to Electronic Ignition Systems]

Choosing the Right MSD Cap or Alternative

When choosing an MSD cap or considering a modern alternative, several factors should be considered:

• Vehicle Type: The type of vehicle and its intended use will influence the choice of ignition system. Classic cars and high-performance vehicles may benefit from a high-quality MSD cap, while modern vehicles are typically equipped with more advanced electronic ignition systems.
• Engine Specifications: The engine’s specifications, including its displacement, compression ratio, and RPM range, will dictate the type of ignition system required.
• Budget: The cost of an MSD cap or alternative ignition system can vary widely. Consider your budget and choose a system that provides the best value for your money.
• Performance Goals: If you are looking to improve engine performance, consider upgrading to a more advanced ignition system, such as a COP or DIS system.

Maintenance Tips for MSD Caps

To ensure the longevity and performance of your MSD cap, follow these maintenance tips:

• Regular Inspection: Inspect the MSD cap regularly for cracks, carbon tracks, and corrosion.
• Cleanliness: Keep the MSD cap clean and free of dirt and debris.
• Proper Installation: Ensure the MSD cap is installed correctly and securely.
• Replacement: Replace the MSD cap at regular intervals, as recommended by the manufacturer.
• Use Quality Parts: Always use high-quality replacement parts to ensure optimal performance and reliability.

Conclusion

The MSD cap is a vital component in many automotive ignition systems, playing a critical role in delivering high-voltage electricity to the spark plugs. While modern alternatives offer improved reliability and performance, understanding the functionality and maintenance of MSD caps remains essential for anyone working with older or high-performance vehicles. By following the tips and guidelines outlined in this article, you can ensure that your ignition system operates efficiently and reliably, providing optimal engine performance and preventing costly repairs. Whether you stick with a traditional MSD cap or upgrade to a modern electronic ignition system, proper maintenance and informed decision-making are key to achieving the best results.
